Diamond wire sawing allows almost any large concrete or masonry structure to be cut where other methods are not feasible. It is an ideal tool for cutting and removing reinforced concrete.

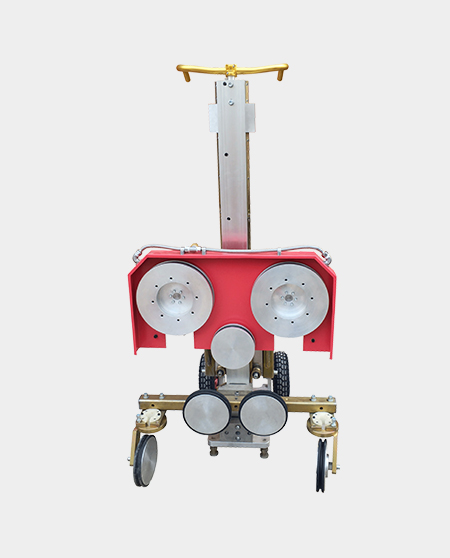

SQ-90AM Hydraulic Wire Saw
$6000 – $18500

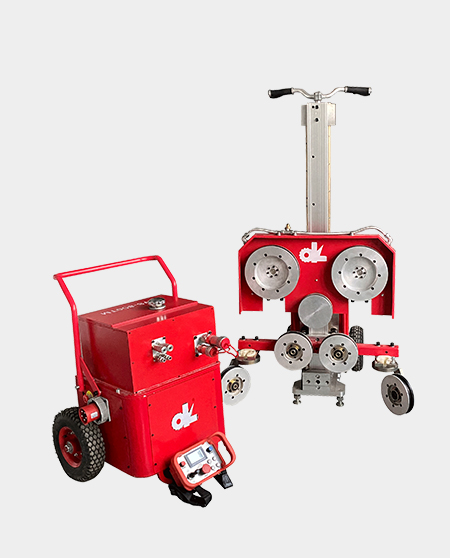

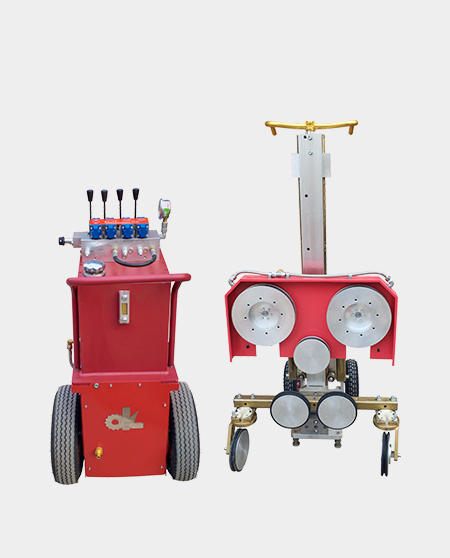

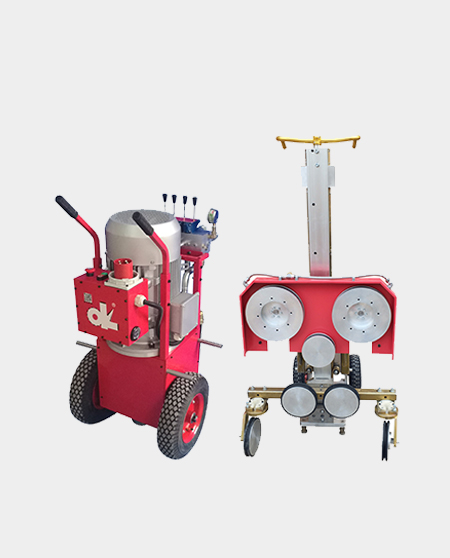

SQ-90AM wire saw system, in combination with the hydraulic power unit 700TM or 800TM, it is designed to cut and remove super thick and heavy reinforced concrete and irregular concrete such as bridge cap beam,box beam and support beam,pier,foundation,underwater concrete,etc.
Product/User Benefits:
l Faster, safer and simpler wire saws
l Extremely large wire storage and long travel to give the greatest possible application and use
l Dual drive motor,automatic tension rope
l Maximum size of unit up to 12 m
l Fine feed for application control using innovative damping system
l Wire saw for direct assembly
l Patented drive roll system
Technical details
| SQ-90AM wire saw system | ||
| max. wire storage | m | 12 |
| total travel | mm | 1200 |
| width | mm | 950 |
| depth | mm | 700 |
| height | mm | 1600(2100mm is available) |
| length of protective cover | mm | 1150 |
| drive wheel | mm | 280 |
| storage wheel | mm | 200 |
| Total weight | kg | 98 (easy to disassemble and assemble) |
| hydraulic power unit 600TM | 25 kW, 380V,50HZ, 200 bar, 30-80/min, 180kg | |
| hydraulic power unit 700TM/800TM | 30 kW, 380V-460V,50/60HZ,210bar,40-100 l/min, 120kg | |
| Power Pack | Without, OK-600TM, 0K-700TM, OK-800TM |
|---|
