Diamond Core Drills & Bits For Cutting: Concrete, asphalt, brick and concrete blocks.great cutting values and tool life on reinforced concrete, even with abrasive aggregates.
Diamond Core Bits
$8 – $81

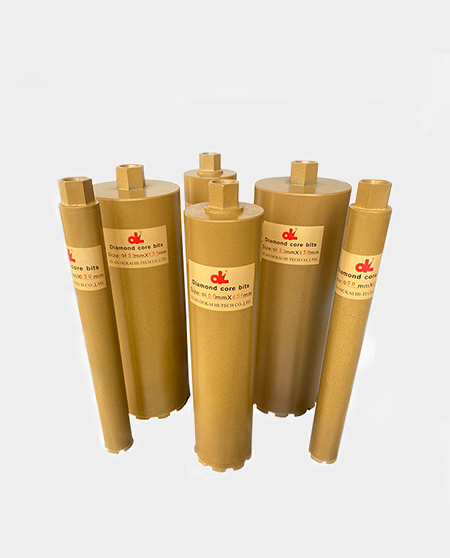

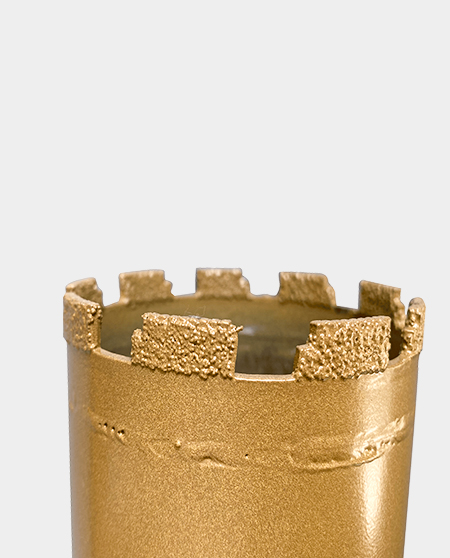

Diamond core bits ideal for drilling concrete, and reinforced concrete
Diamond segment
- Segment suitable for brazing.
- Convincing with high cutting valuse.
- Powerful especially on strongly reinforced concrete and strongly reinforced concrete with hard aggregates.

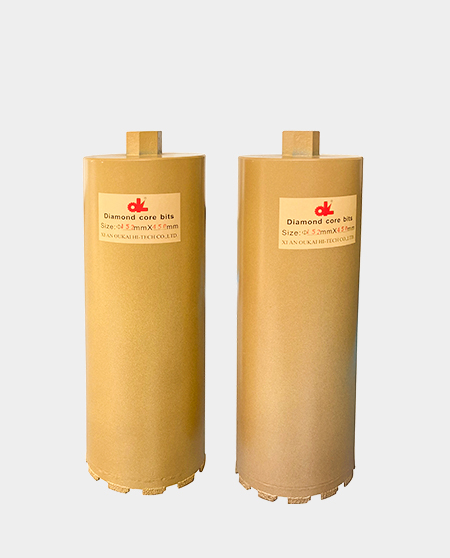

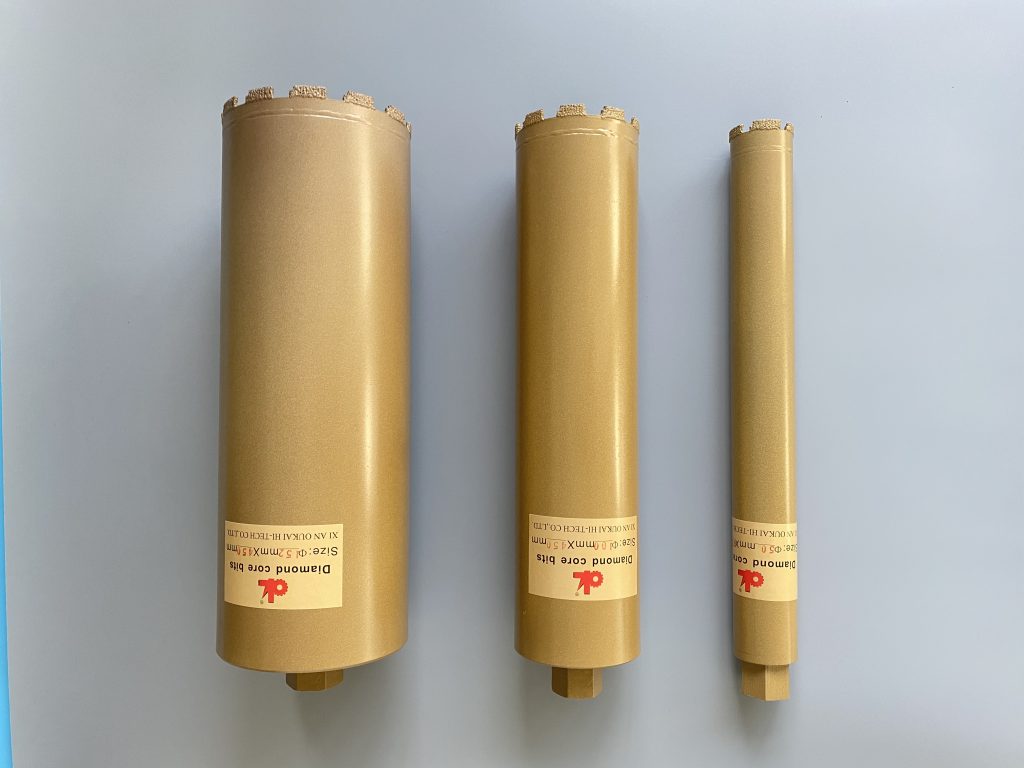

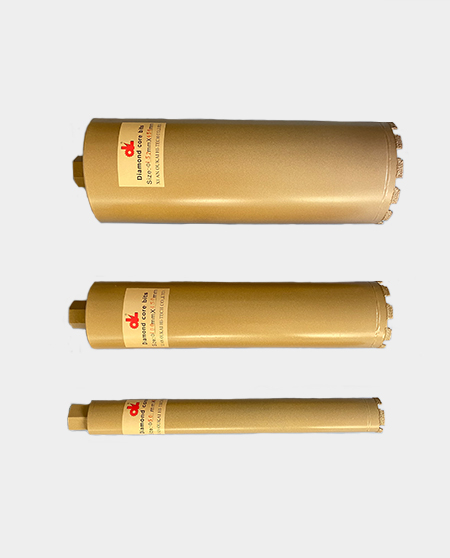

Core drill bits,brazed,with 11/4” UNC connection
For wet and dry drilling in reinforced concrete with normal and hard aggregates.
- Segment for fast speed work and long tool life.

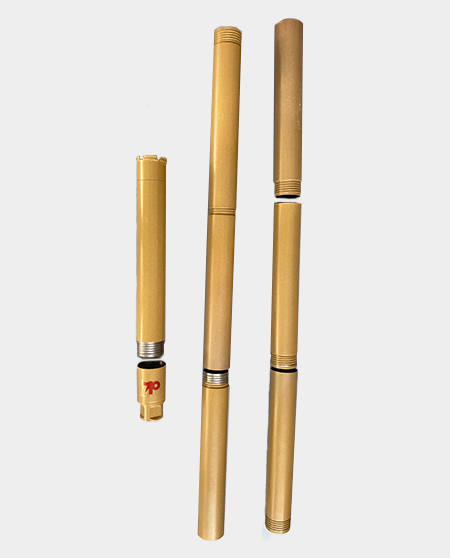

- Standard working length 450mm/370mm

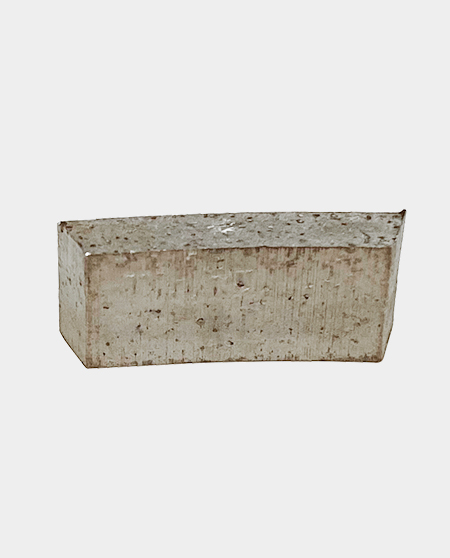

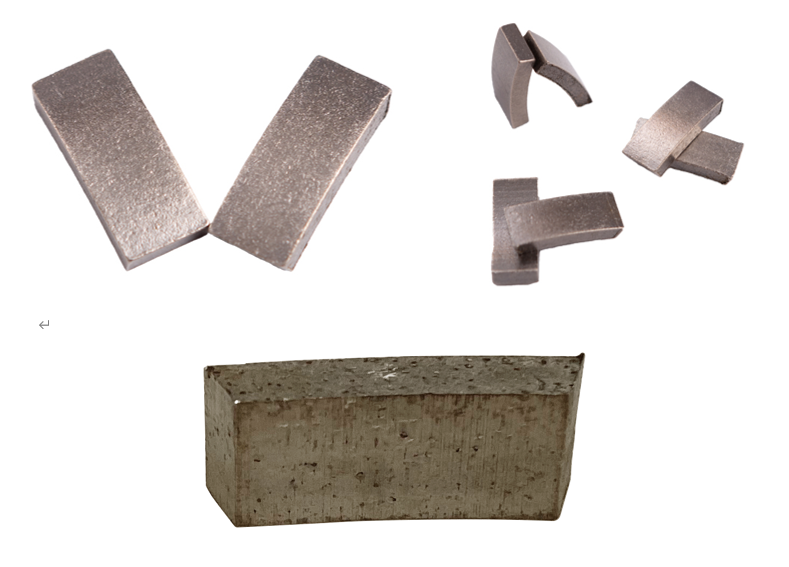

Cobalt Aero Diamond Segment
| Product Name | Diamond core bit segments (it is made 100% cobalt) |
| Size | Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to meet your requirement. ) |
| Diameter | 25-1000mm diamond core drill bit segment can be made |
| Application | Diamond core drill bit segment used for stone and construction use, drilling reinforced concrete, granite etc. |
| Feature | 1. Fast cutting/drilling & long life & Stable performance, High grade of diamonds
2. Different bonds are for different applications & precise segment size 3. Working safe, quiet, and precise, reducing cutting & working time 4. Great adaptability & No chipping |
Core Drill Bit Quotation
| Segment Type | Diameter | Segment | Unit price(Laser
weiding Premium Qualitv) |
||||
| L | W | H | NO. | Unit price | |||
|
Arix segments
|
32 | 16 | 3.7 | 12 | 4 | $1.53 | US$15.9 |
| 35 | 16 | 3.7 | 12 | 4 | $1.53 | US$16.0 | |
| 38 | 16 | 3.7 | 12 | 5 | $1.53 | US$18.5 | |
| 40 | 16 | 3.7 | 12 | 5 | $1.53 | US$18.6 | |
| 42 | 16 | 3.7 | 12 | 5 | $1.53 | US$18.9 | |
| 51 | 24 | 3.7 | 12 | 5 | $1.90 | US$21.1 | |
| 56 | 24 | 3.7 | 12 | 5 | $1.90 | US$21.6 | |
| 63 | 24 | 3.7 | 12 | 6 | $1.90 | US$24.7 | |
| 68 | 24 | 3.7 | 12 | 6 | $1.90 | US$25.6 | |
| 78 | 24 | 3.7 | 12 | 7 | $1.90 | US$29.1 | |
| 82 | 24 | 3.7 | 12 | 7 | $1.90 | US$29.6 | |
|
Arix segments |
92 | 24 | 3.7 | 12 | 8 | $1.90 | US$33.7 |
| 102 | 24 | 4 | 12 | 9 | $1.99 | US$37.7 | |
| 108 | 24 | 4 | 12 | 9 | $1.99 | US$38.4 | |
| 112 | 24 | 4 | 12 | 9 | $1.99 | US$39.7 | |
| 122 | 24 | 4 | 12 | 10 | $1.99 | US$42.6 | |
| 127 | 24 | 4 | 12 | 10 | $1.99 | US$43.0 | |
| 132 | 24 | 4 | 12 | 10 | $1.99 | US$45.2 | |
| 142 | 24 | 4 | 12 | 12 | $1.99 | US$52.0 | |
| 152 | 24 | 4 | 12 | 12 | $1.99 | US$55.0 | |
| 160 | 24 | 4 | 12 | 12 | $1.99 | US$57.5 | |
| 162 | 24 | 4 | 12 | 12 | $1.99 | US$57.5 | |
| 182 | 24 | 4.6 | 12 | 13 | $2.09 | US$71.6 | |
| 202 | 24 | 4.6 | 12 | 14 | $2.09 | US$79.2 | |
| 225 | 24 | 4.6 | 12 | 15 | $2.09 | US$94.0 | |
| 250 | 24 | 4.6 | 12 | 17 | $2.09 | US$100.9 | |
| 280 | 24 | 4.6 | 12 | 18 | $2.09 | US$109.2 | |
| 300 | 24 | 4.6 | 12 | 18 | $2.09 | US$111.3 | |
| 323 | 24 | 4.6 | 12 | 19 | $2.09 | US$126.0 | |
| 350 | 24 | 4.6 | 12 | 20 | $2.09 | US$135.7 | |
| Weight | N/A |
|---|---|
| Length | 370mm, 450mm |
| Diameter | φ32, φ36, φ40, φ51, φ76, φ83, φ89, φ96, φ102, φ108, φ120, φ127, φ132, φ152, φ162, φ168, φ180, φ200, φ220, φ254 |
